Feature:

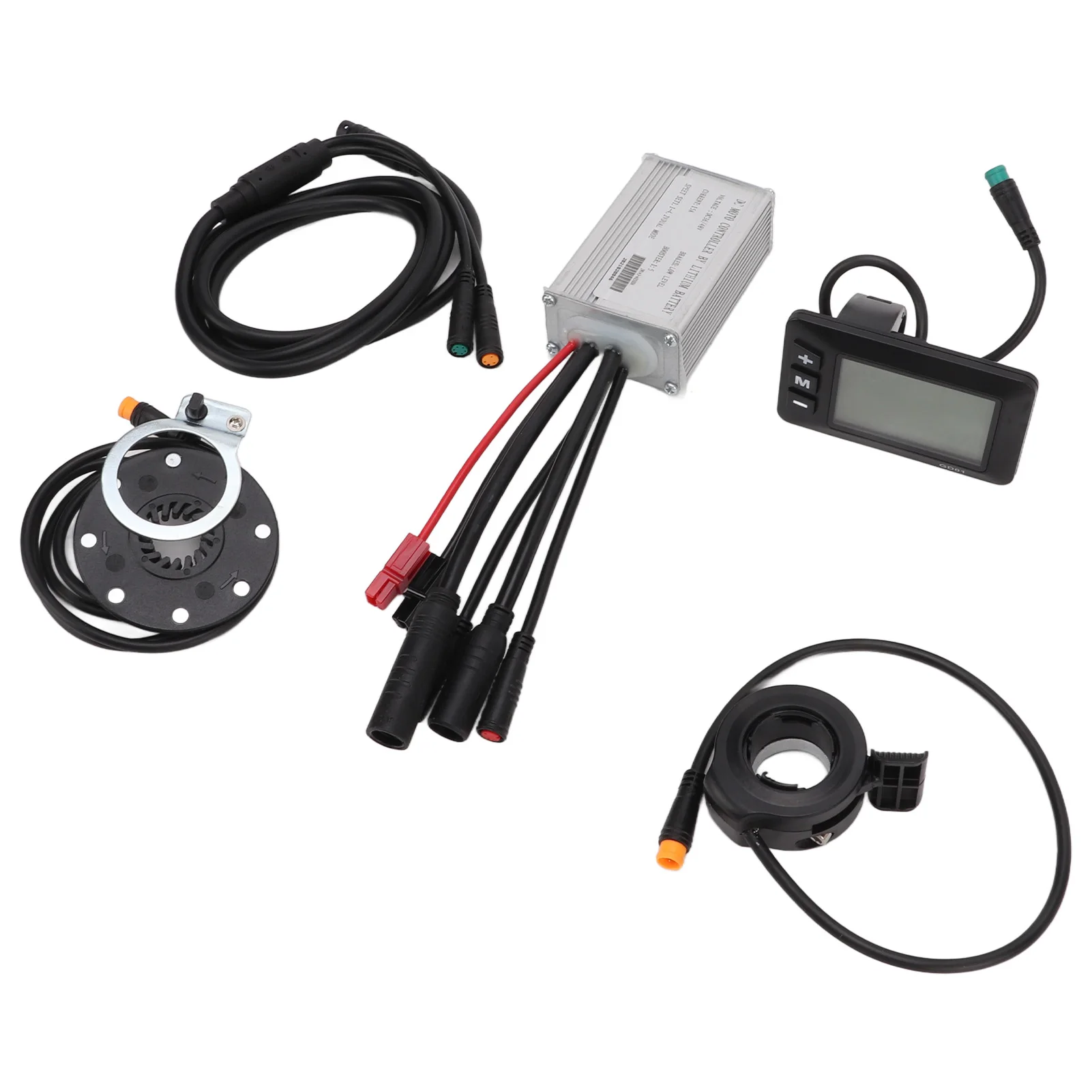

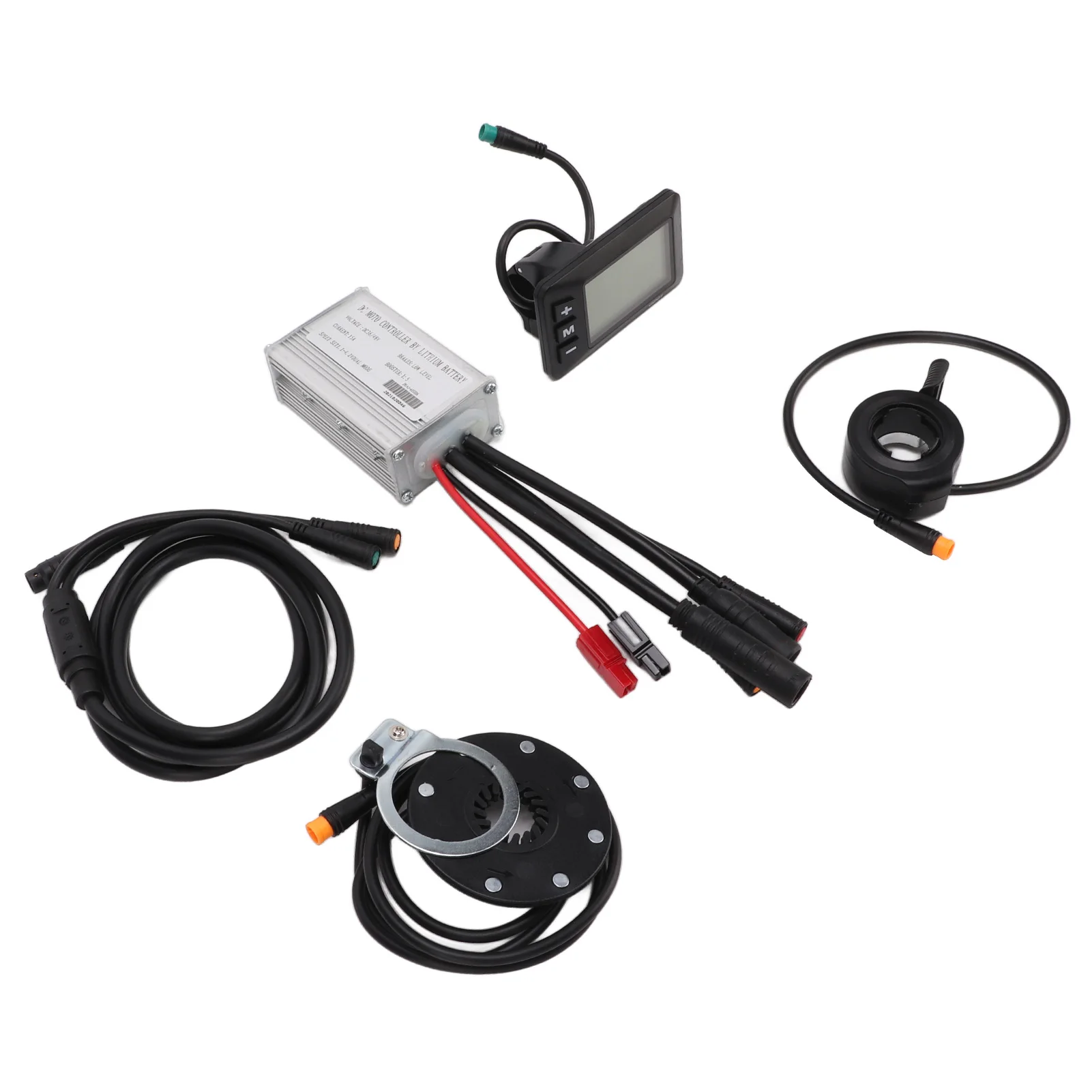

1. Rich Content: There is 15A controller, GD01 panel,130X thumb throttle, 8C power assist sensor, 1 to 2 cable included in the package, the rich content can meet your needs to convert your electric bikes or repair the damaged part.
2. Outer Housing: The controller housing is made of high quality metal with grooves designed to protect the internal circuitry from thermal overload due to good heat dissipation.
3. High Performance: LCD instrument adopts high quality ABS material which is light weight, has good toughness and waterproof properties, providing better protection for internal circuits, making it more durable.
4. Panel Function: Panel are compatible with 36V and 48V voltages, and while riding the bike, the product will display a lot of useful data on your bike, such as intelligent power display, truly reflect battery power, real time record power consumption, ensure cycling mileage, headlight control, backlight brightness 3 level adjustment, 5 gear control, mileage display, fault code display, power promotion mode 6km/h, etc.
5. Application Scope: Suitable for 250W,350W motor; Main uses is for DIY electric bike, electric bike, electric scooter, folding bikes, etc.; Easy to maintain, the lithium ion bike modification greatly enhances the pleasure of riding.

Specification:

Item Type: Electric Bike Conversion Kit
Material: Aluminum Alloy + ABS Plastic
Color: As Picture Shown
Application: for 250W, 350W Bicycle Motor
Gross Weight: Approx.532g/18.8oz

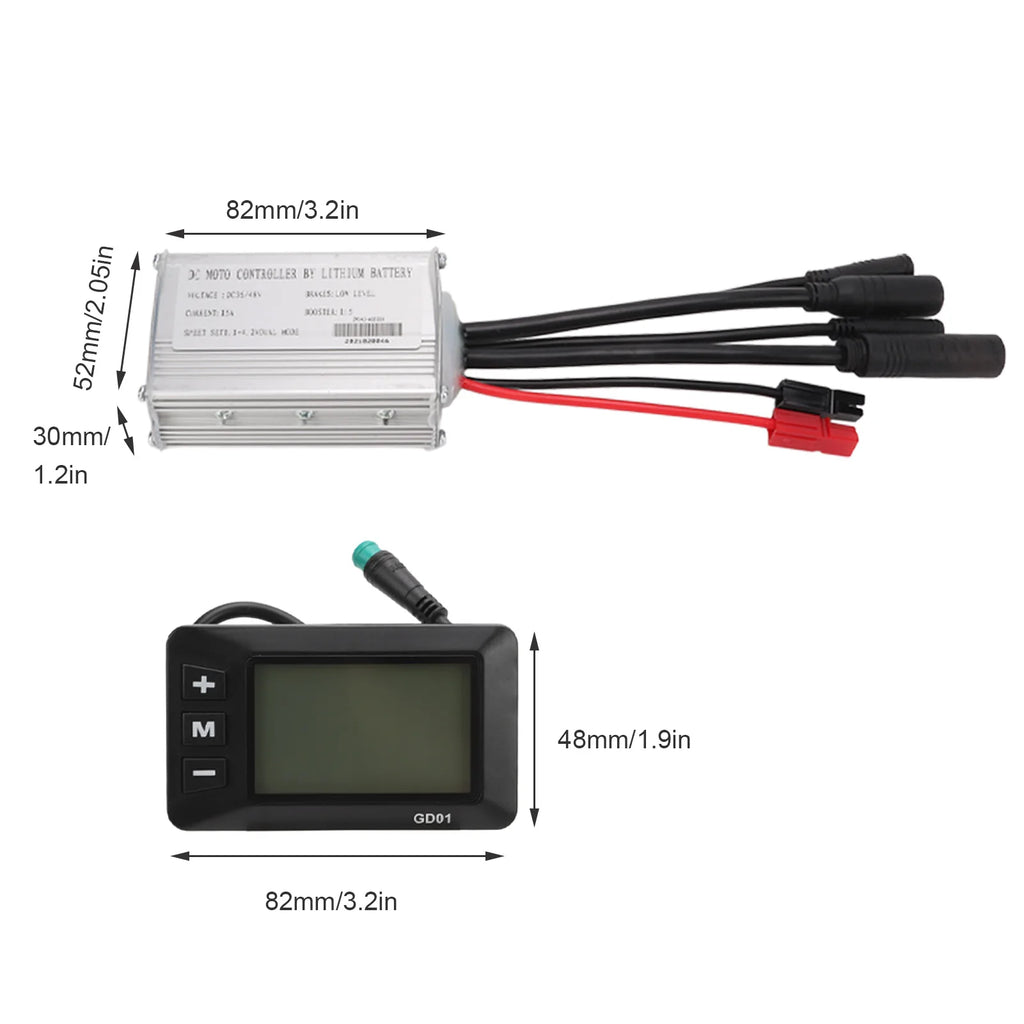

Product Size: Controller Box 82x52x30mm/3.2x2.05x1.2in, Panel 82x48mm/3.2x1.9in

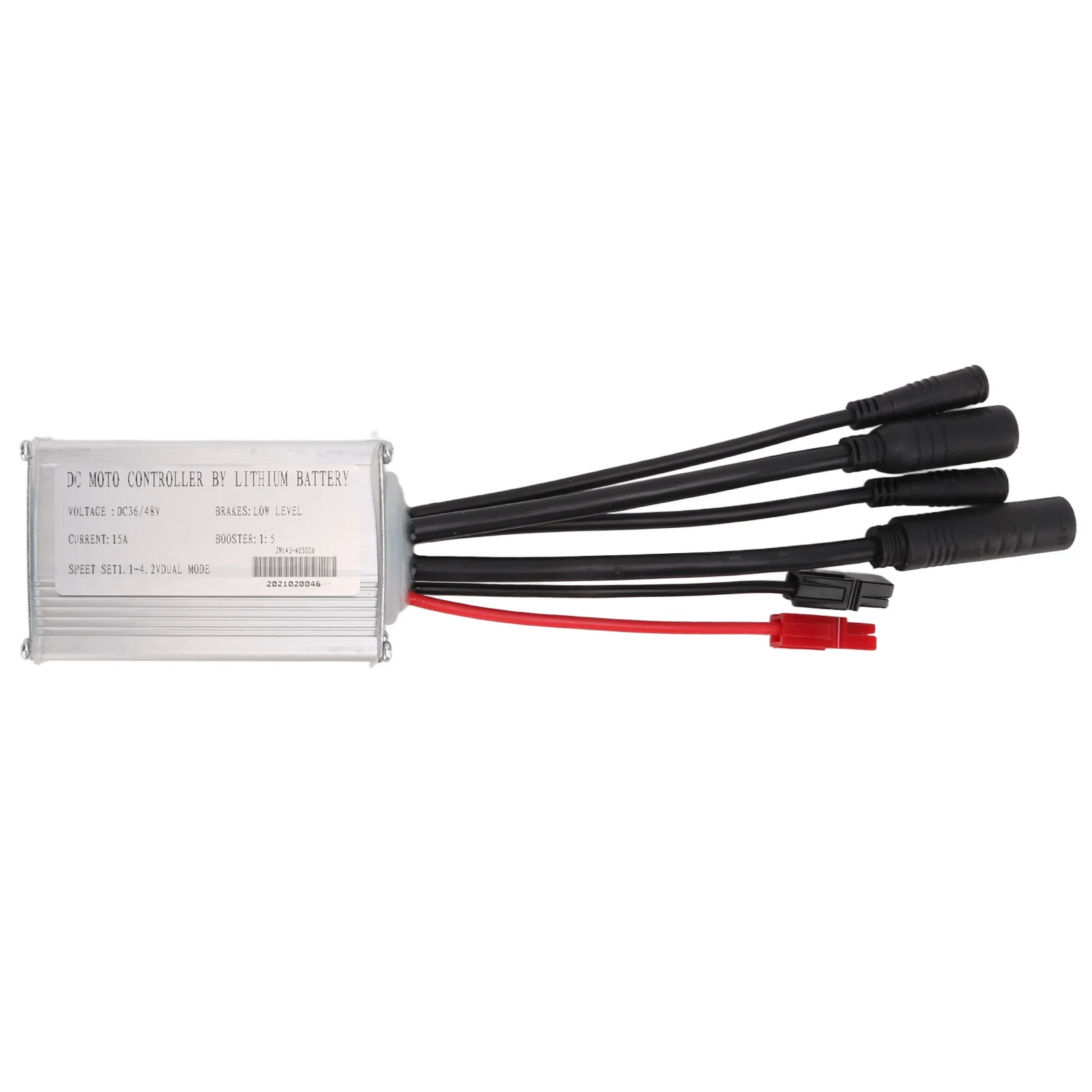

Controller Rated Voltage: DC 36V/48V
Controller Maximum Current: 15A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
BOOSTER: 1:5

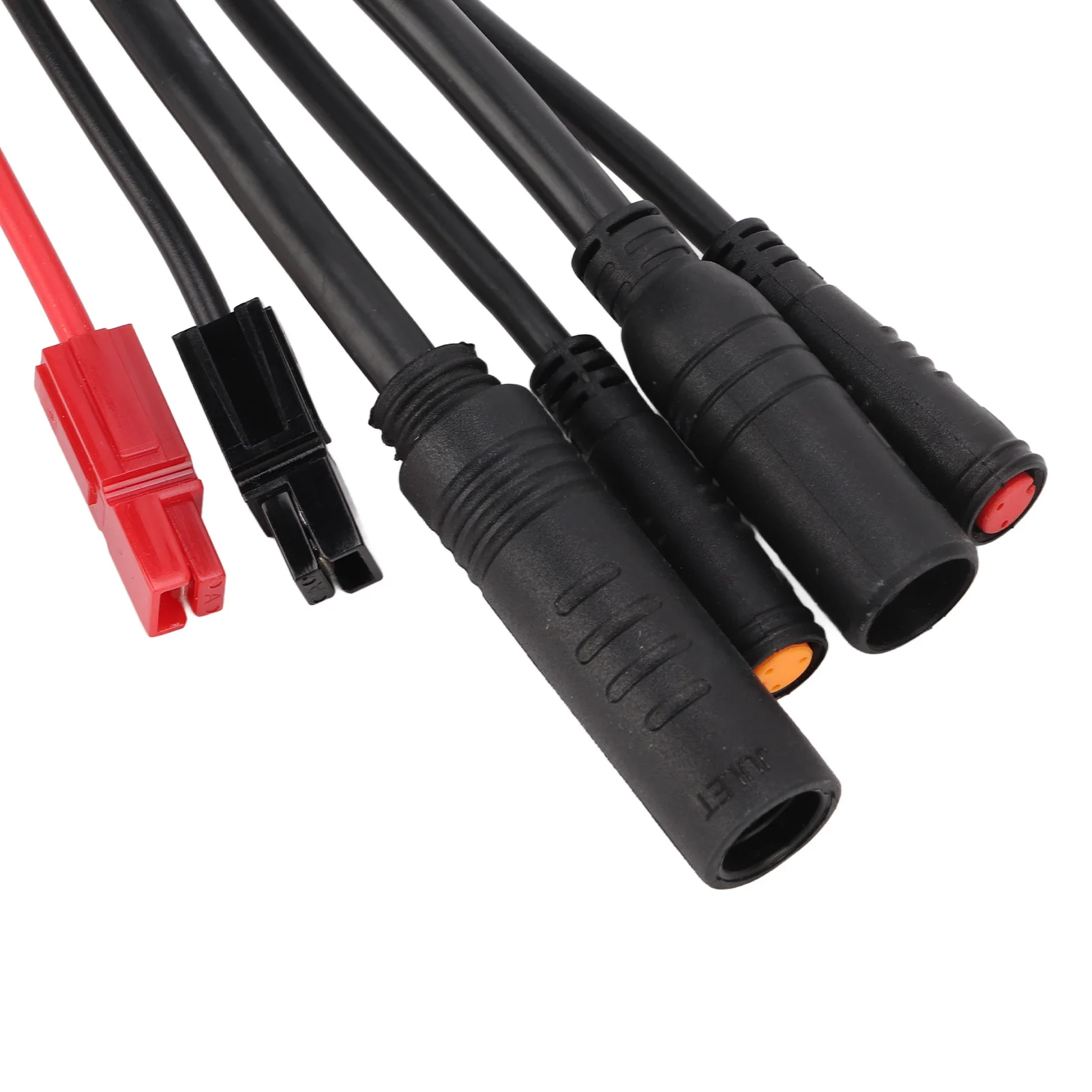

Connector Type: Fully Waterproof Connector

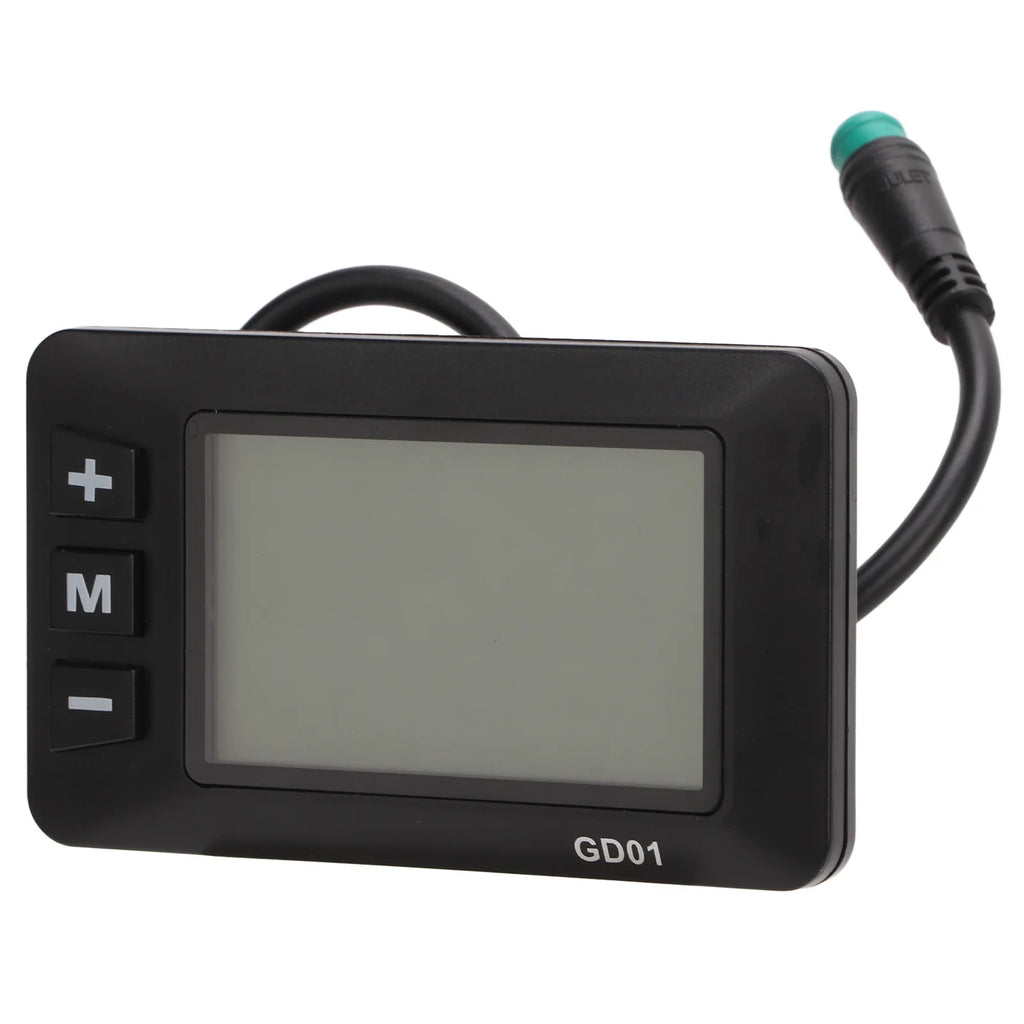

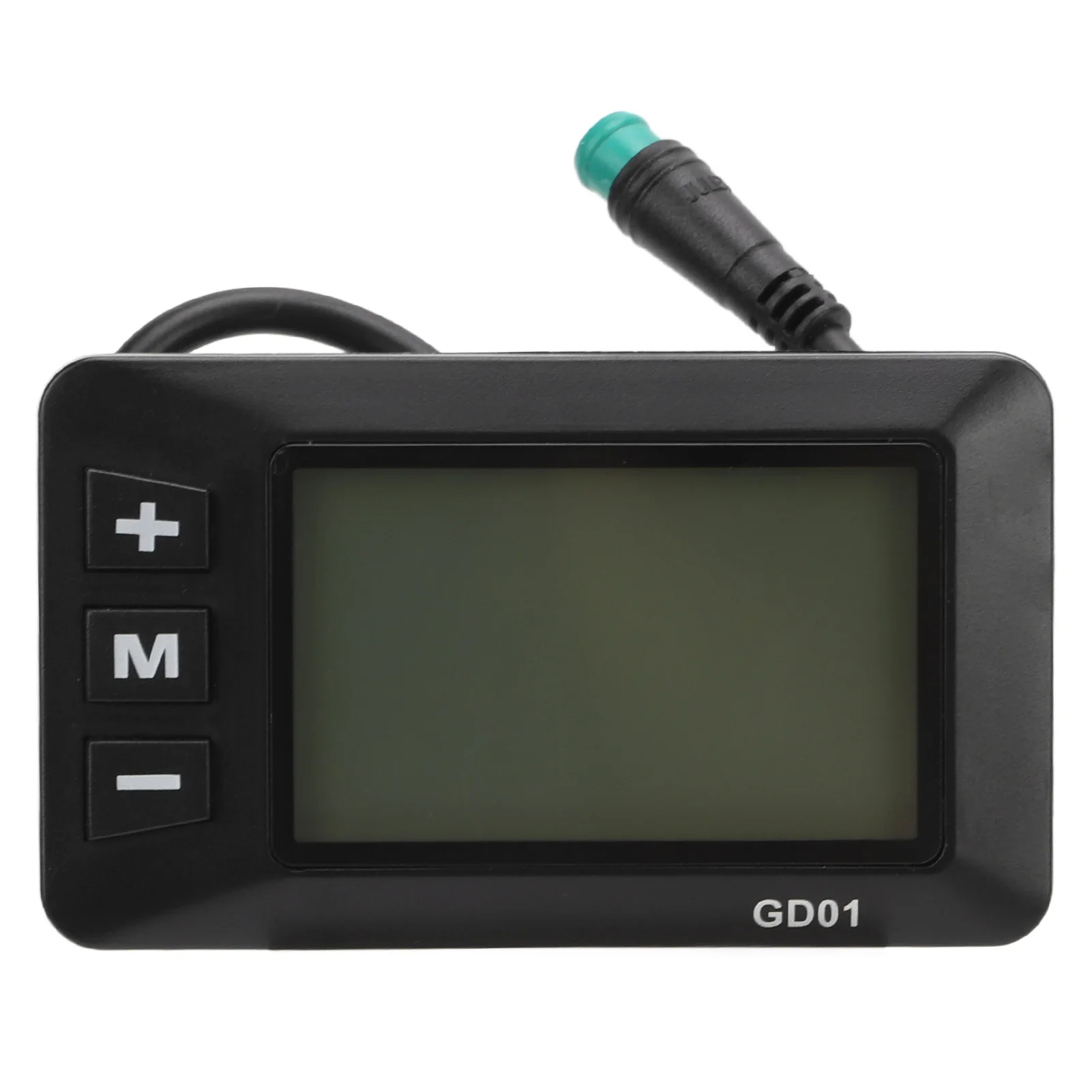

GD01 meter function description:
1. Bidirectional communication protocol;
2. Real time speed display;
3. Km/mi display;
4. Intelligent electric quantity display;
5. Headlight control;
6. Backlight brightness level 3 adjustment;
7. 5 gear control;
8. Mileage display;
9. Fault code display;
10. Assisted implementation mode 6km/h
11. Set parameters. VOL, DST: battery life
3.3 Speed display area
AVG: average SPEED, MAX: maximum SPEED, SPEED: current SPEED: unit: Mp/h km/h
The speed signal is taken from the Hall signal in the motor and sent to the instrument by the controller. (Time of a single Hall cycle, unit: 1MS) The instrument will calculate the true speed based on the wheel diameter and signal data (the amount of magnetic steel required by the motor hall)
3.4 Vehicle power gear adjustment, 0-9 digital display and bar display.

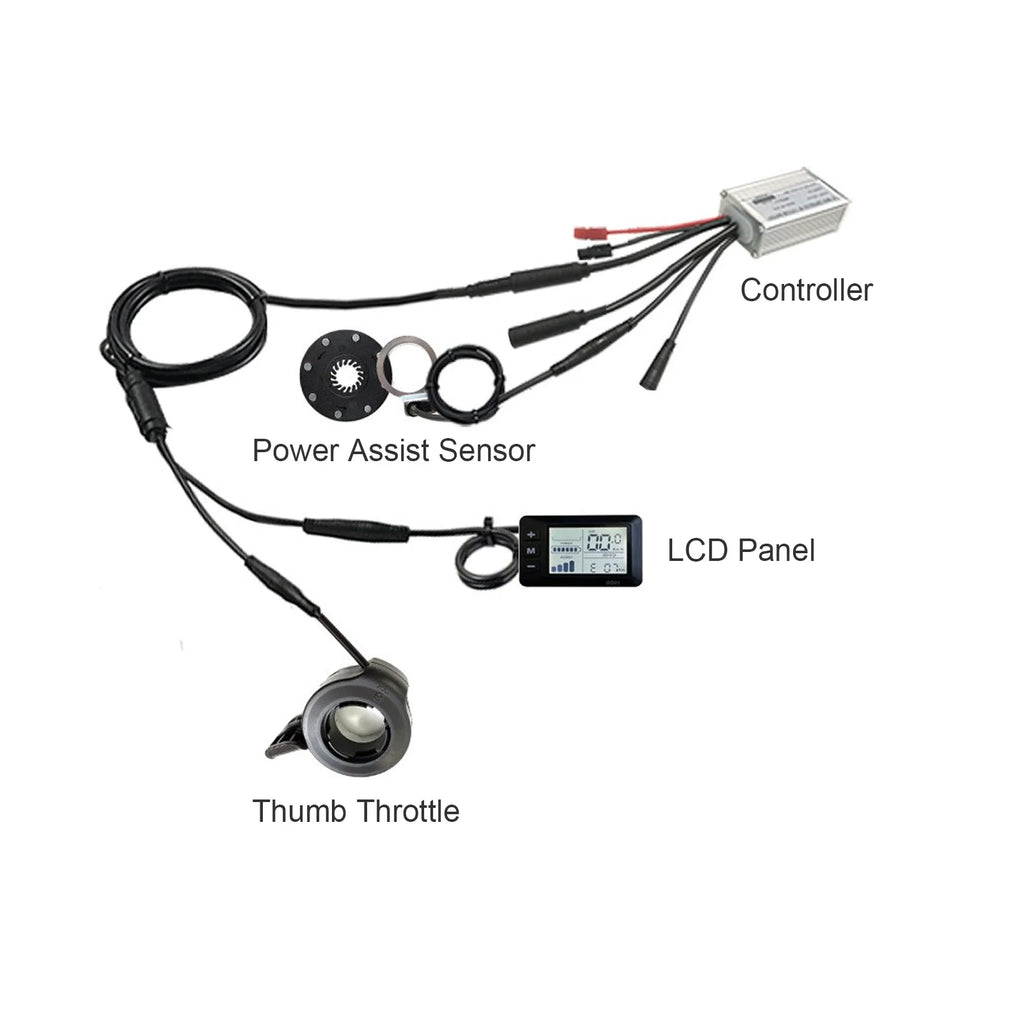

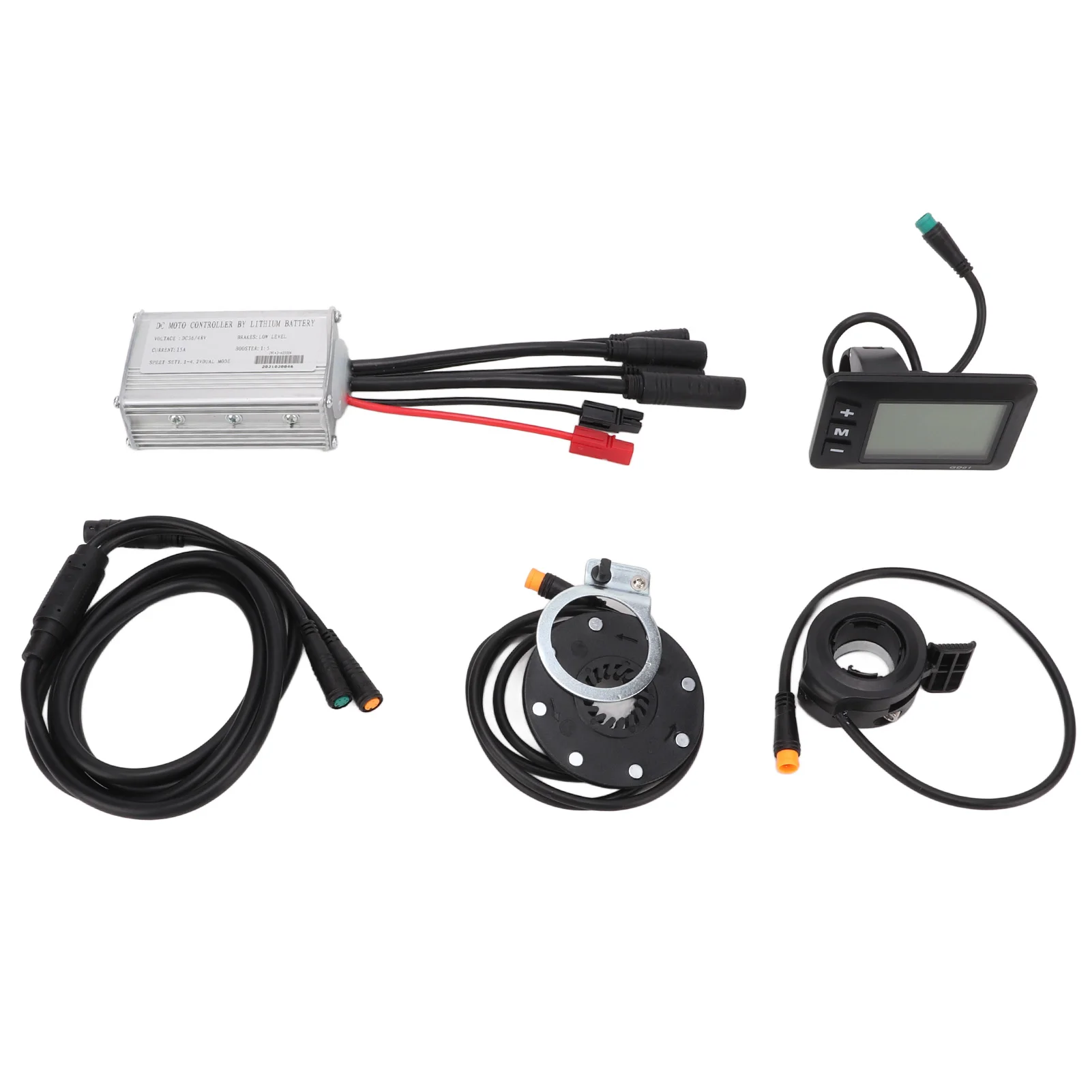

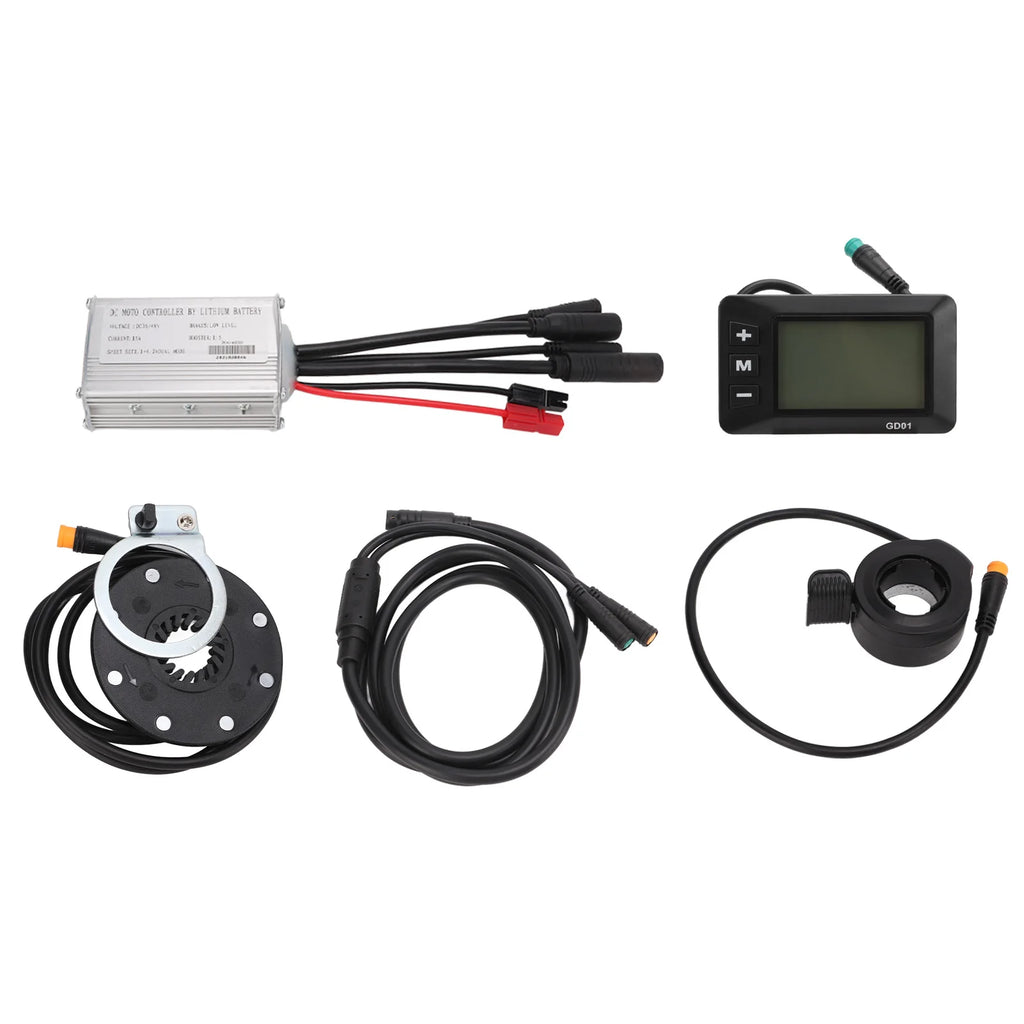

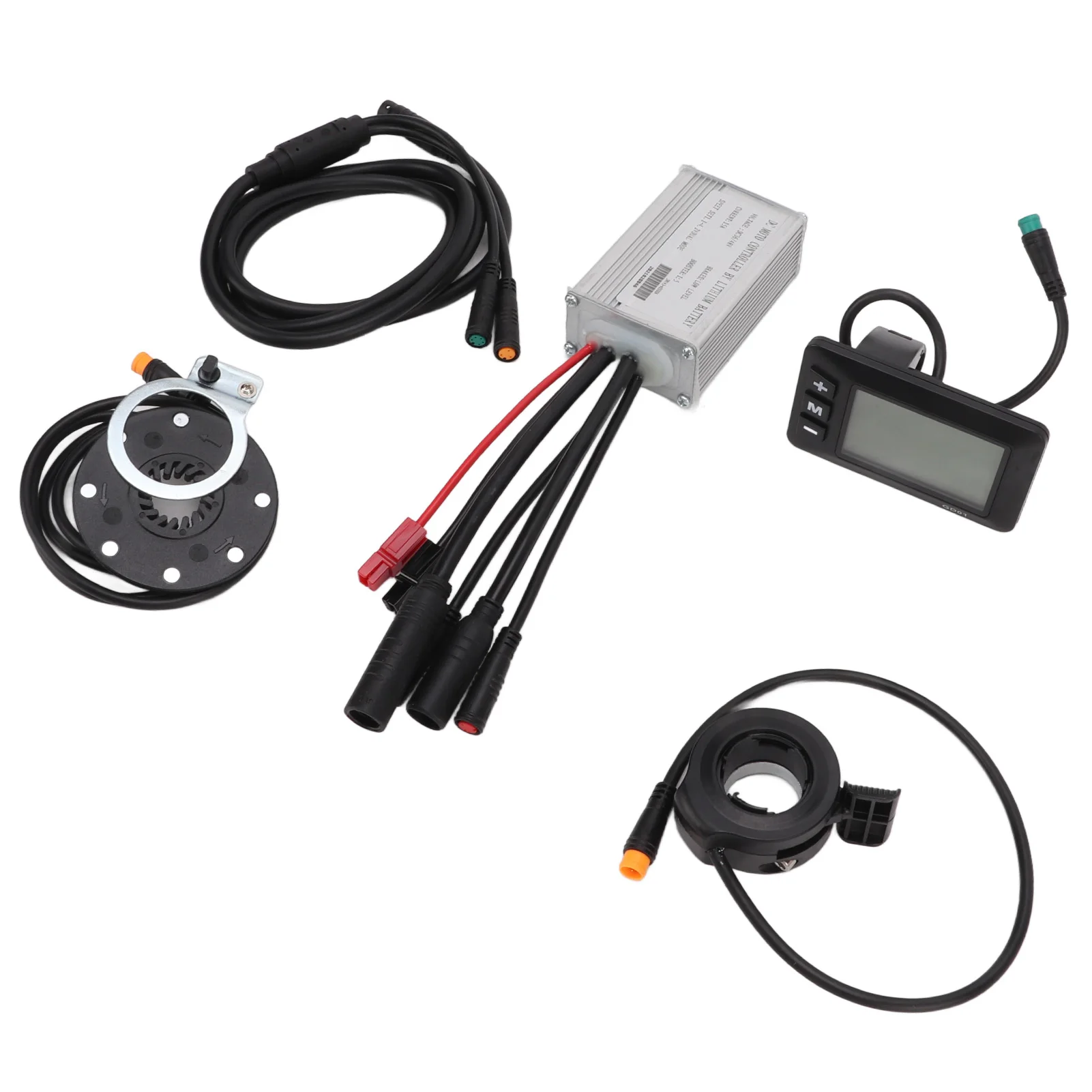

Package List:

1 x Motor Controller

1 x Panel

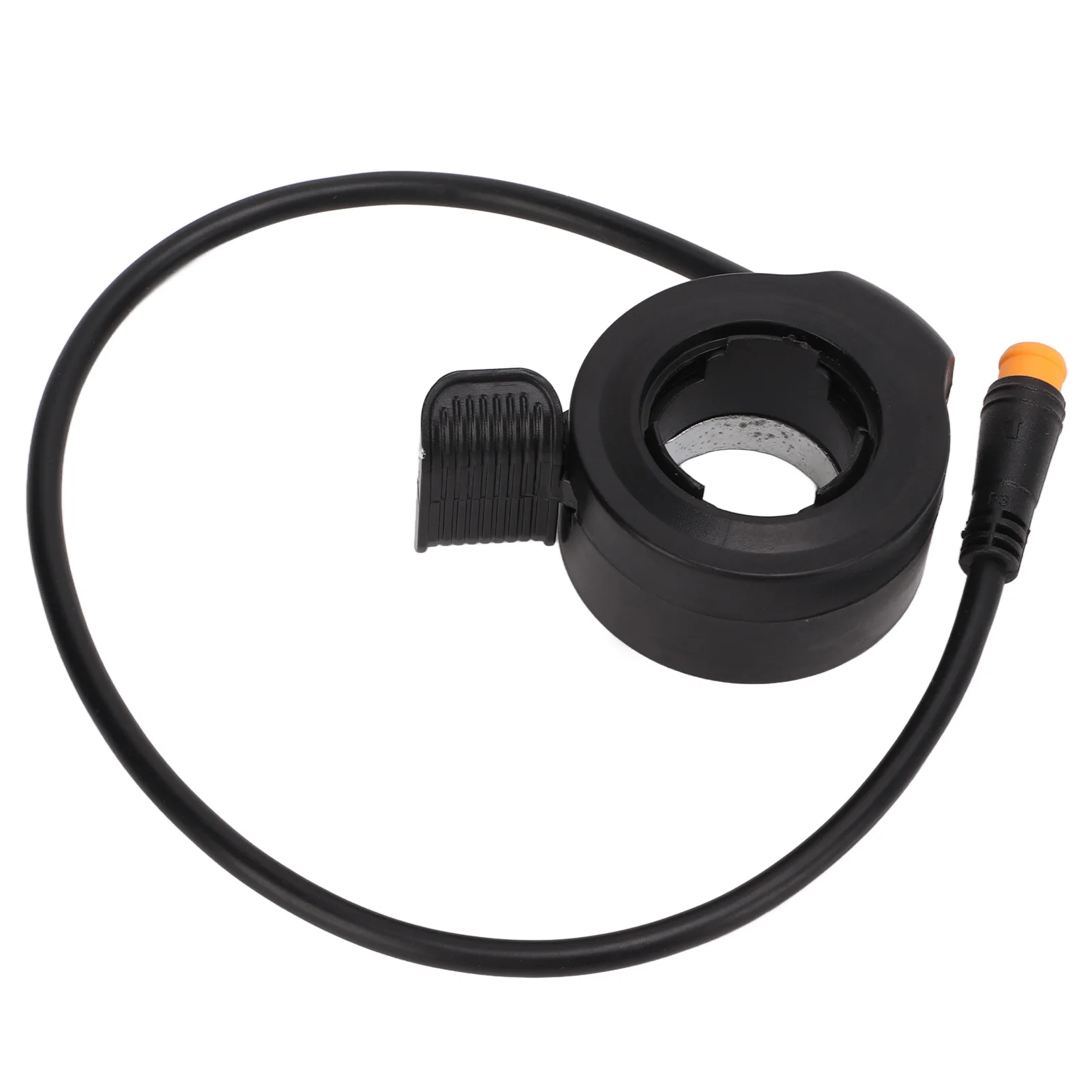

1 x Thumb Throttle

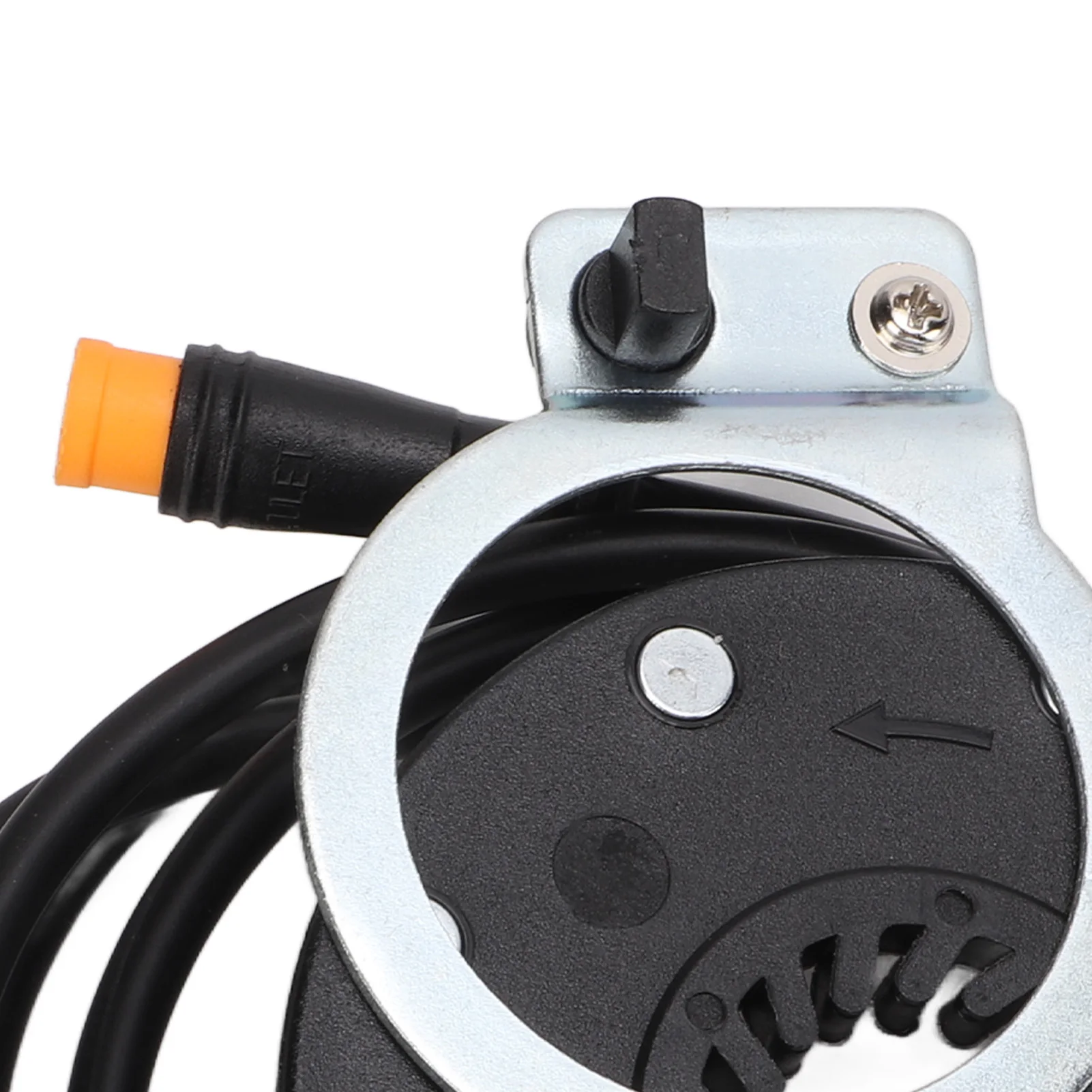

1 x Power Assist Sensor

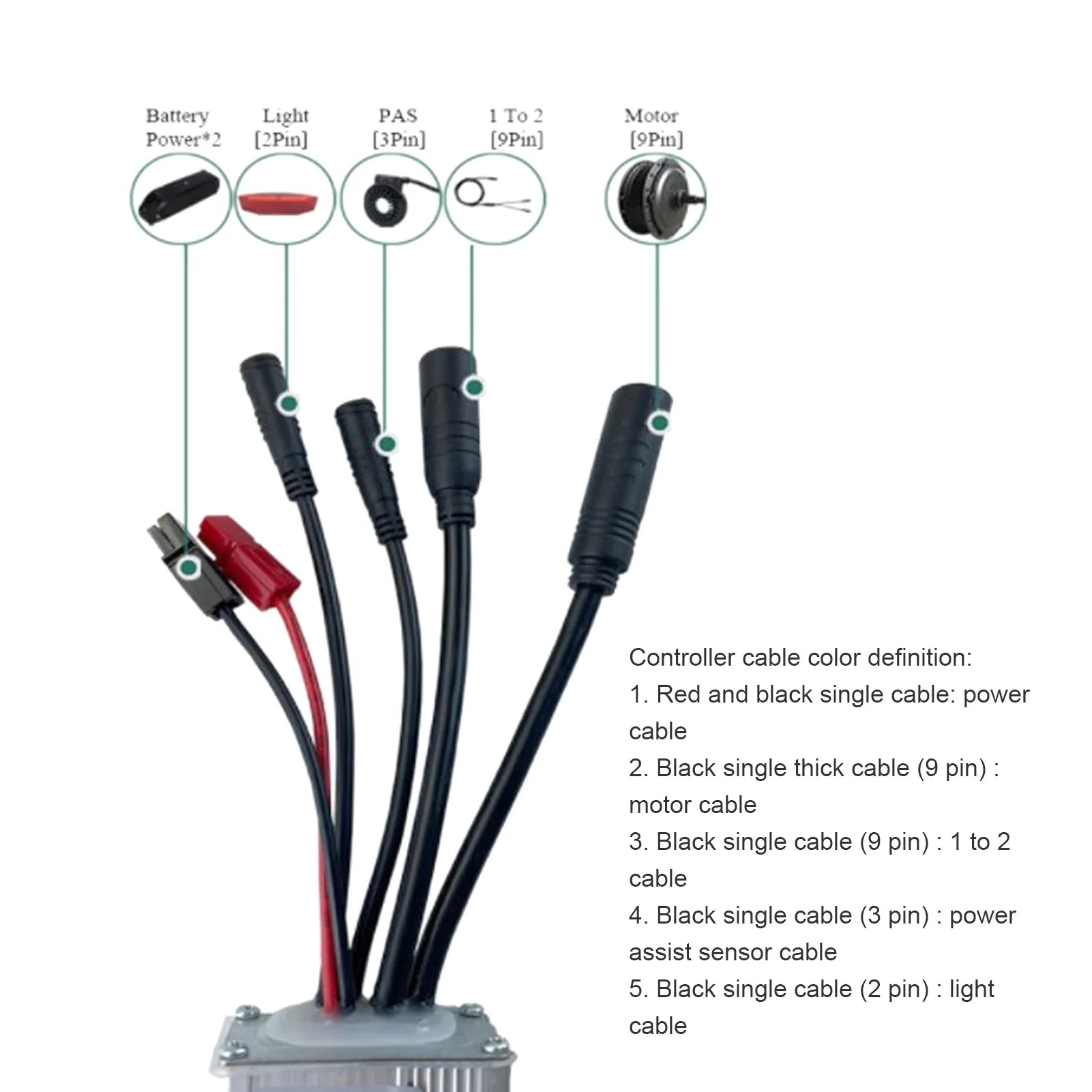

1 x Controller Wiring Manual

1 x 1 to 2 Cable

Note:

Note that the modification kit must be fully waterproof
